Formal Fundamentals
(click on pic to enlarge image)
|

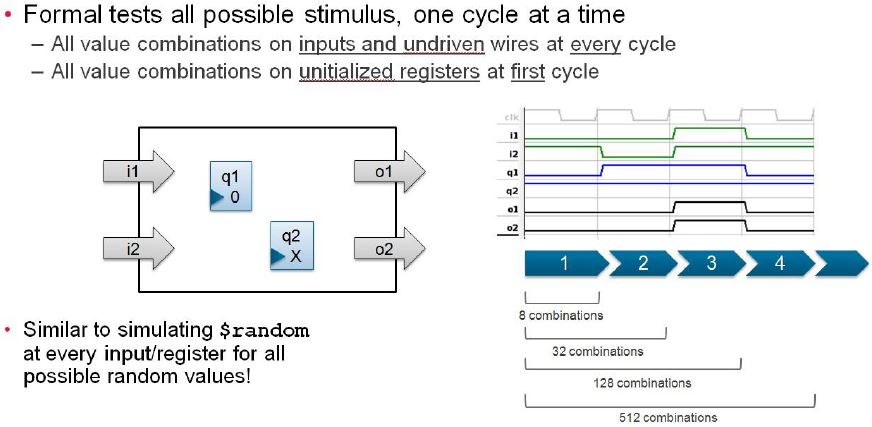

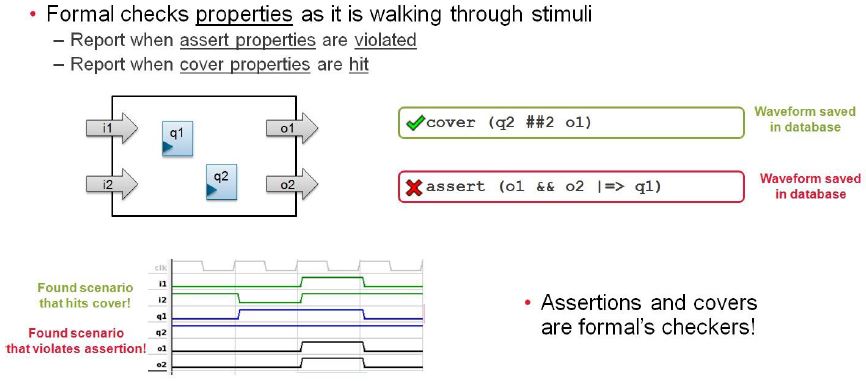

Formal Properties
(click on pic to enlarge image)
|

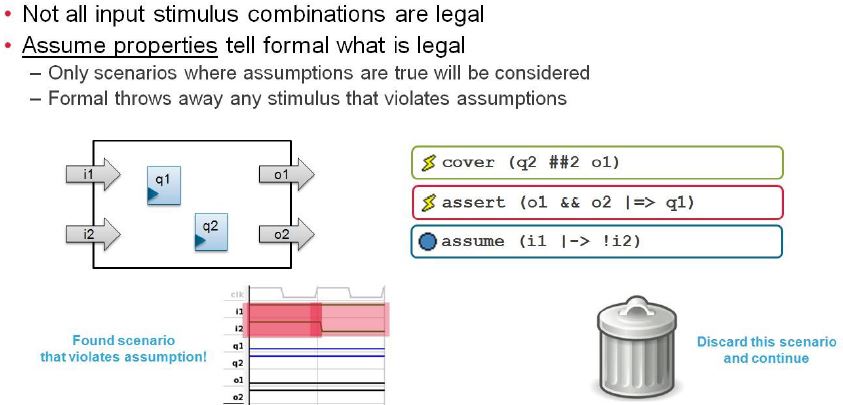

Formal Constraints
(click on pic to enlarge image)
|

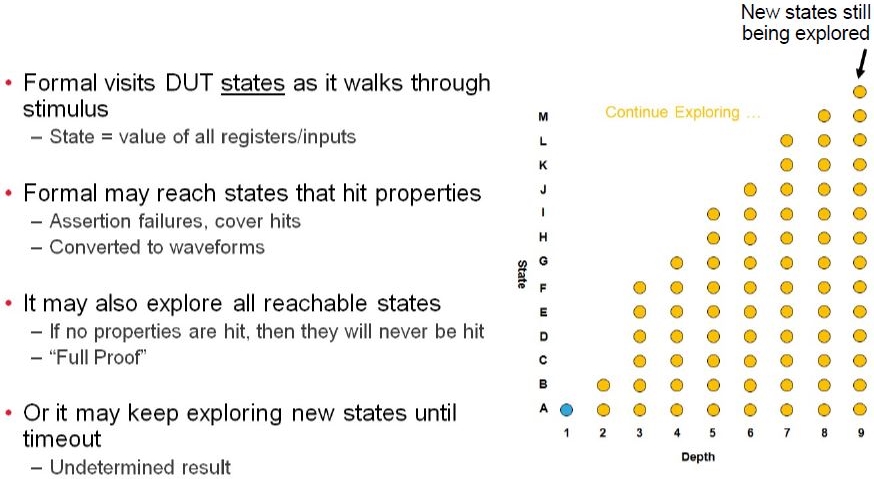

Formal Static State Exploration
(click on pic to enlarge image)
|
Notice how Formal tries to reach (cover) all possible states at
all cycles in your design.
Formal vs. Verilog Simulation/Emulation
(click on pic to enlarge image)
|

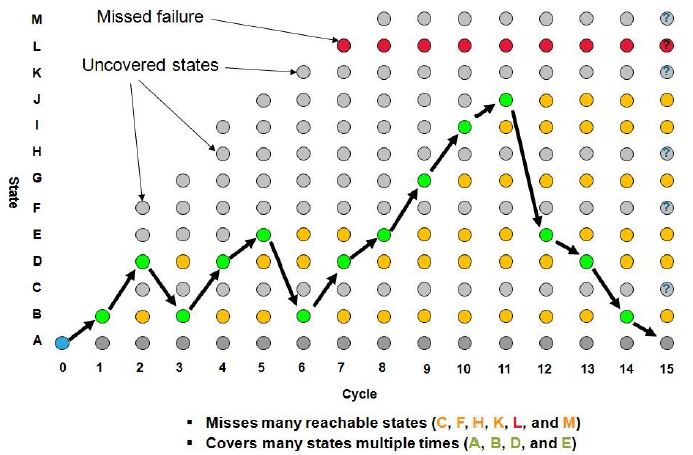

Notice how Simulation/Emulation only reaches (covers) a few
possible states and only at certain cycles in your design.
A Simple FIFO Example
(click on pic to enlarge image)
|

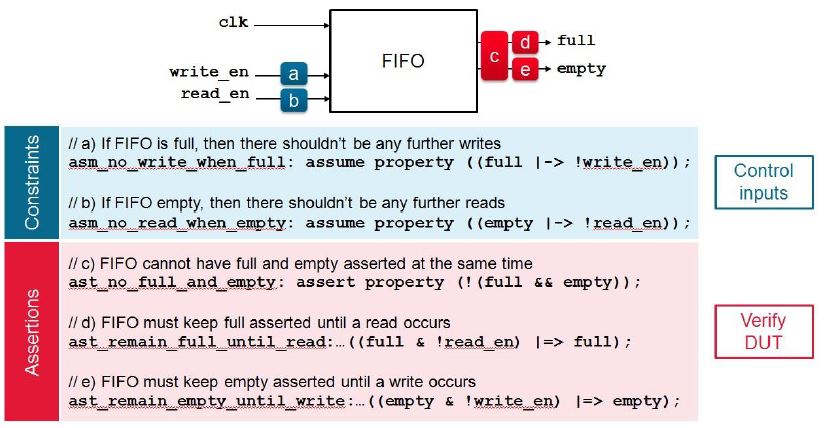

Notice setting up the constraints (expectations about how the
input to the FIFO should behave) and assertions (expected output
from the FIFO.)
(click on pic to enlarge image)
|

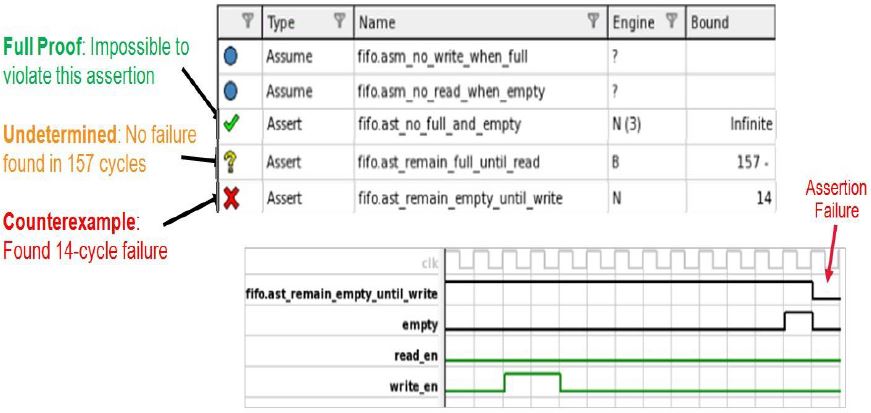

Using these input constraints and output assertions JasperGold
then determines one of three possible results for each assertion.
1. Full Proof. A specific assertion is mathematically
proven to be true for all states at all cycles.
2. Undertermined. A specific assertion is holds true
for all states up to a certain number of cycles.
("No failure found in 157 cycles.")
3. Counterexample. A specific assertion is found to be
false for all states at a certain specific cycle.
("Counterexample found at cycle 14.")
Keep in mind these 3 possible results are based on your inputs
meeting the specific input constraints only. If you feed your
FIFO drunken (outside of the constraints) input, JasperGold will
neither prove nor disprove your design.

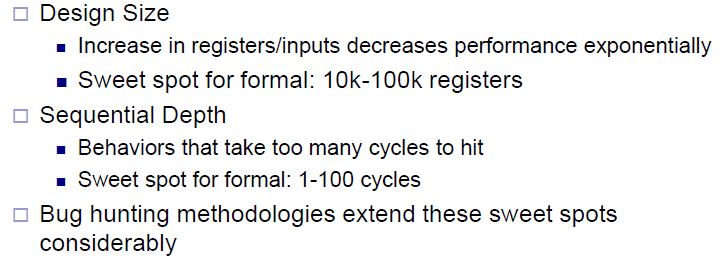

Formal's Sweet Spot
(click on pic to enlarge image)
|
Formal work well on designs/blocks with 10k-100k registers and
for depths up to 100 cycles.
Also overconstraining inputs can explode your Formal runtimes.
Using Cover Properties As A Bug Hunting Technique In Formal

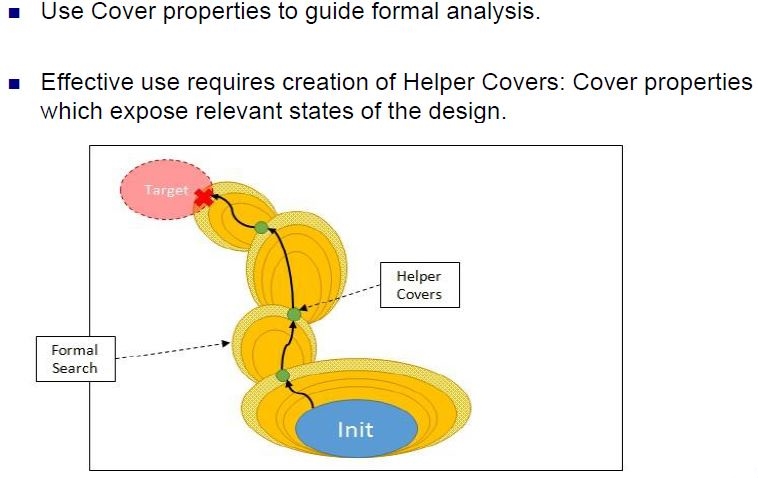

(click on pic to enlarge image)
|
Helper Covers tell JasperGold "during state-space explorations
you must make sure you visit these specific states." JasperGold
then naturally looks around in the neighborhood of any state it
visits -- where it might suddenly find a bug.

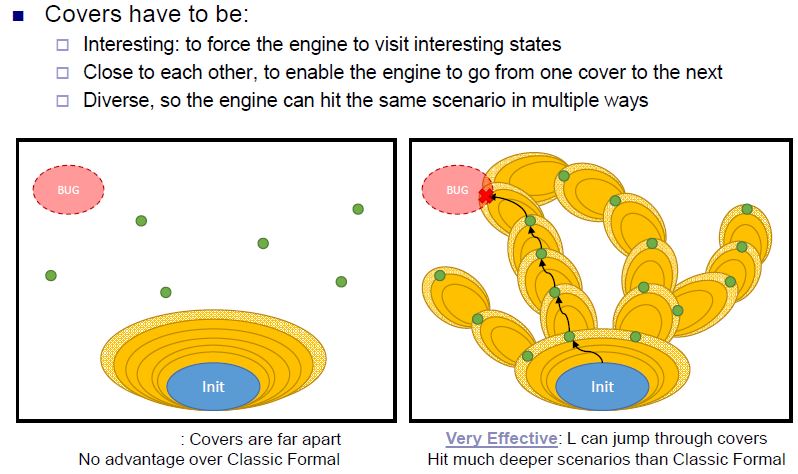

(click on pic to enlarge image)
|
Helper Covers must be close enough to each other such that Formal
can reach it! (Otherwise it's unreachable and JasperGold spends
a lot of time trying to reach it.)

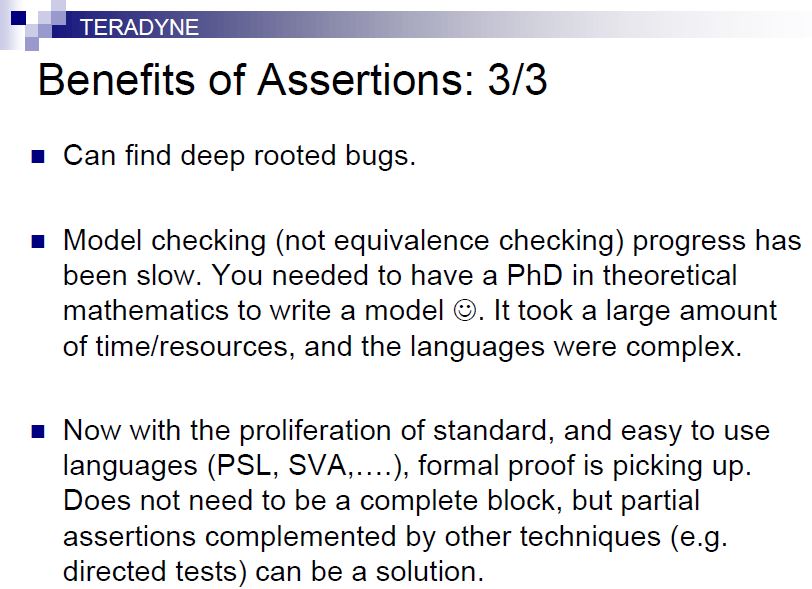

Why Everyone Loves Assertions And ABV

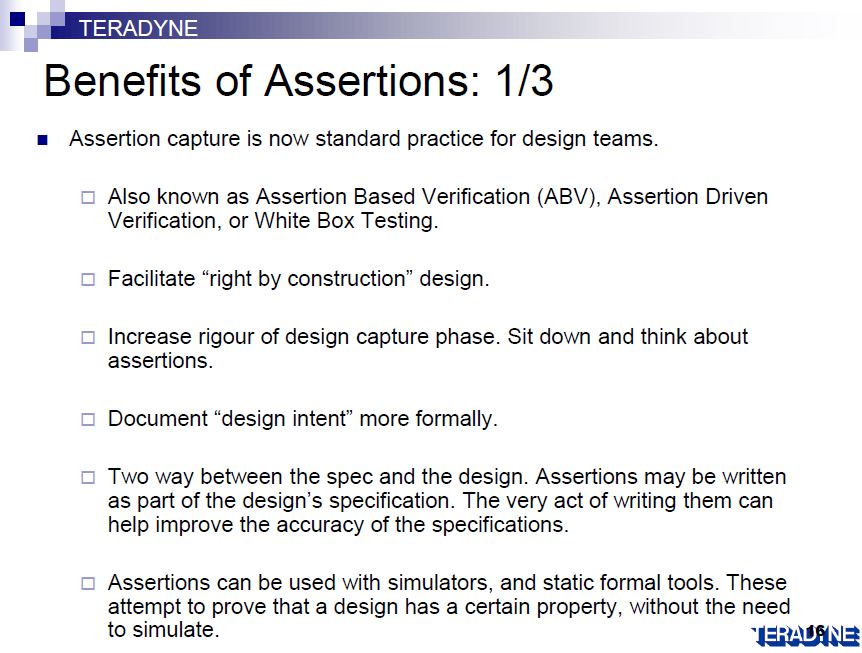

(click on pic to enlarge image)
|

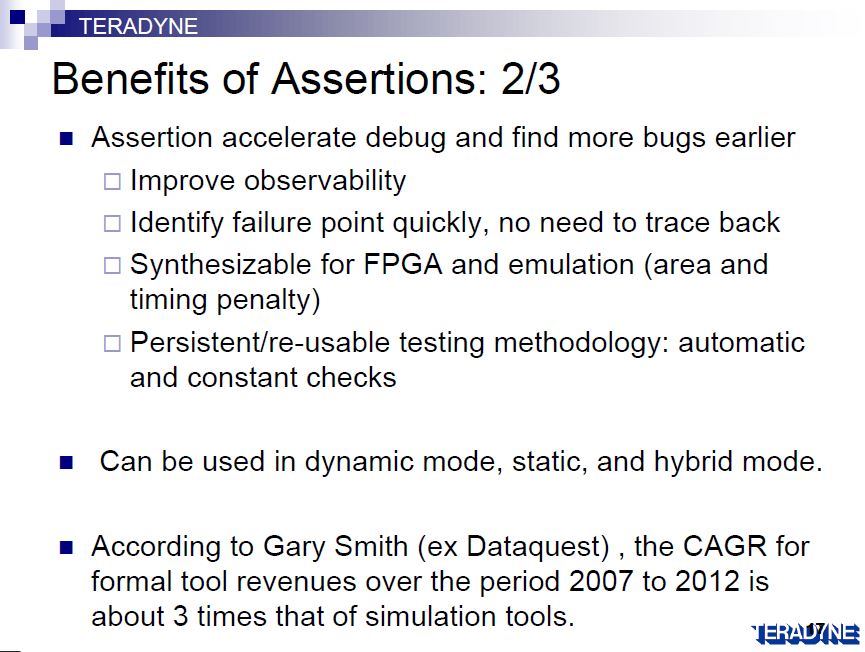

(click on pic to enlarge image)
|
(click on pic to enlarge image)
|

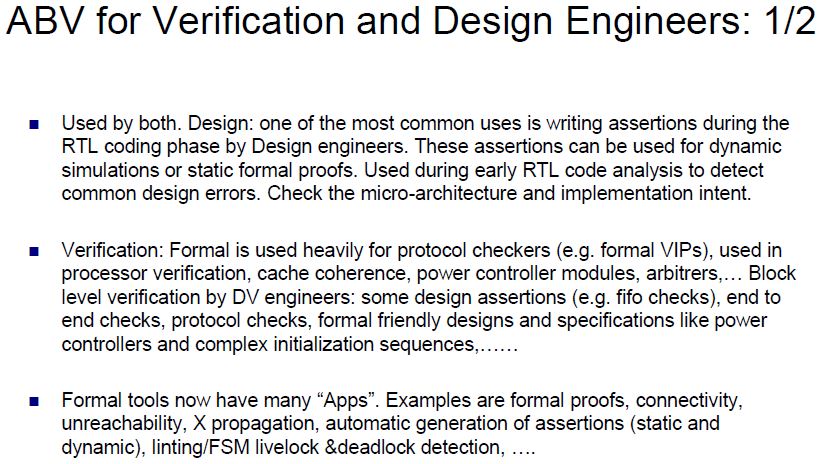

Using ABV For Both Verification And Design Engineers

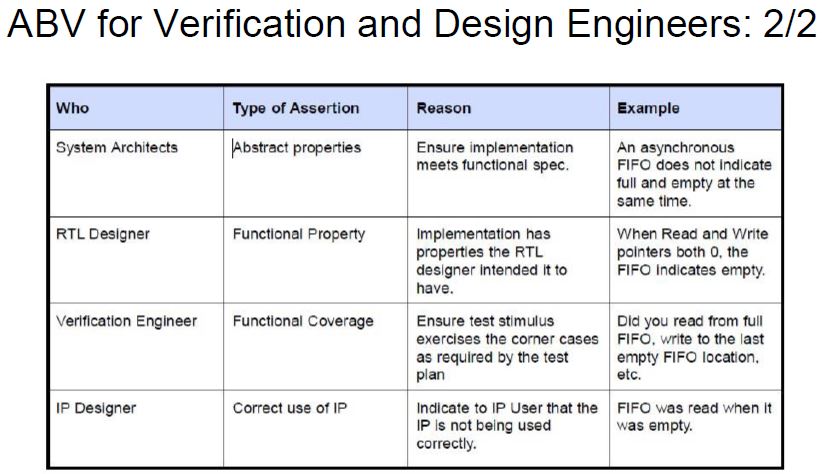

(click on pic to enlarge image)
|
(click on pic to enlarge image)
|
---- ---- ---- ---- ---- ---- ----
What follows in the next link is how Teradyne used JasperGold to do formal
on two chips:
1.) To do a formal connectivity test on the extracted Verilog
of a Virtuoso generated 27-input OR gate in a "large Mixed-
Signal SoC".
2.) To do a formal state UNReachability test to find dead code
in a "large Digital SoC".
And to share their ramp-up experiences with JasperGold.
- Kamal Sekhon
Oski Technology San Jose, CA
---- ---- ---- ---- ---- ---- ----
|
Kamal Sekhon works as a verification consultant at Oski Tech in San Jose, CA. She's big fan of
the Denver Broncos and she still can't get over their 5 wins, 11 losses 2017 record. |
